YTW-02A Electric bicycle dc hub motor/disc brake cassette motor

  • 2 - 499 Pieces
    $55.00
  • >=500 Pieces
    $50.00
Voltage(V):
24V/36V/48V
Output Power:
180~350W
Speed of Revolution:
200~370
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples:
$55.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
XIONGDA
Model Number:
YTW-02A
Usage:
Electric Bicycle, Electric bicycle
Certification:
CCC, ce, RoHS
Type:
GEAR MOTOR
Torque:
45N.m
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Waterproof
Speed(RPM):
200~370
Continuous Current(A):
Current
Efficiency:
81%
Frame Material:
Aluminum Alloy
Power Supply:
Lithium Battery
wheel size:
14''~28''
weight:
2.8kgs
Freewheel:
cassette or thread-on
cable location:
right
Brake type:
Disc Brake/V brake/Drum brake
Product Name:
Electric bicycle dc hub motor
Supply Ability
Supply Ability:
300 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
6 pcs/export standard carton+foam
Carton package suitable for air or sea transportation
Port
Shanghai
Picture Example:
package-img
Product Description

 Product Features:

  • Brushless and gear motor
  • Soft start performance
  • Cassette freewheel or thread-on freewheel
  • High Efficiency
  • Low noise
  • Energy Saving
  • Long riding distance
  • Logo can be customized
  • ODM order are welcome

Products Parameters



Rated Voltage (V)

24/36/48

Cable Location

right

Rated Power (W)

180~350

Spoke Specification

12g/13g

Wheel Size (inch)

14--28

Hall Sensor

Yes

Rated Speed (km/h)

<=28

Speed sensor inside

Optional

Rated Efficiency (%)

>=81

Surface

Silver/Black painted

Reduction Ratio

1:4.3

Brake Type

Disc-brake/V- brake/Drum brake

Weight (Kg)

2.8

Salt fog test (h)

24/96

Open Size (mm)

Optional

Noise (db)

< 60

Drive

Rear/Front

Waterproof Grade

IP54

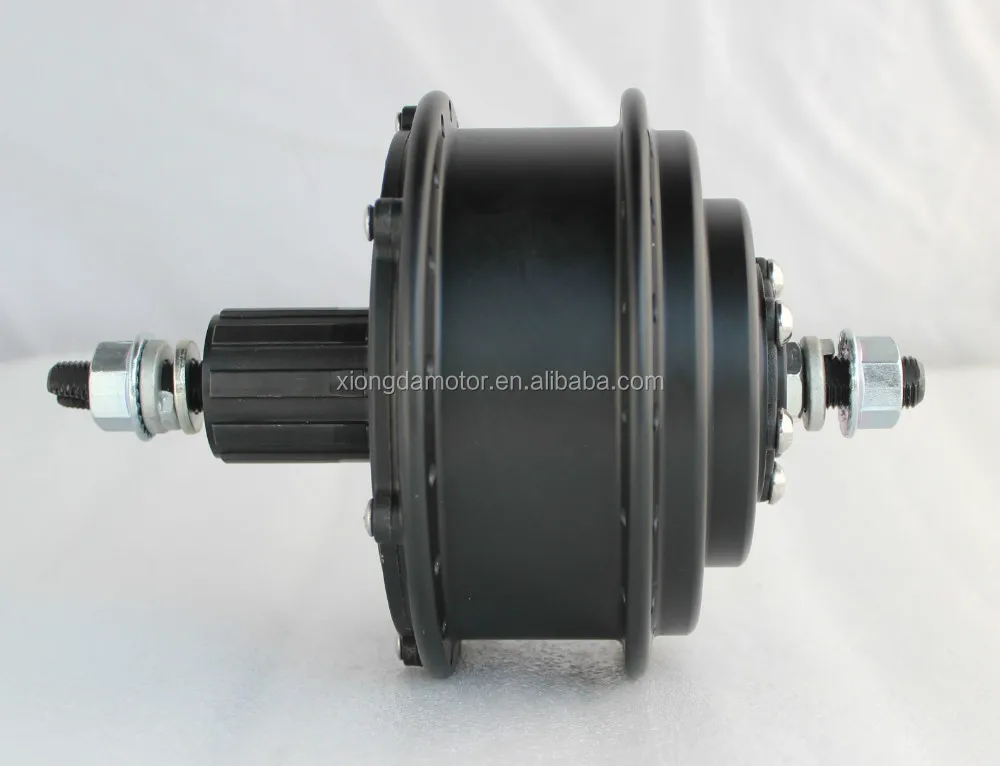

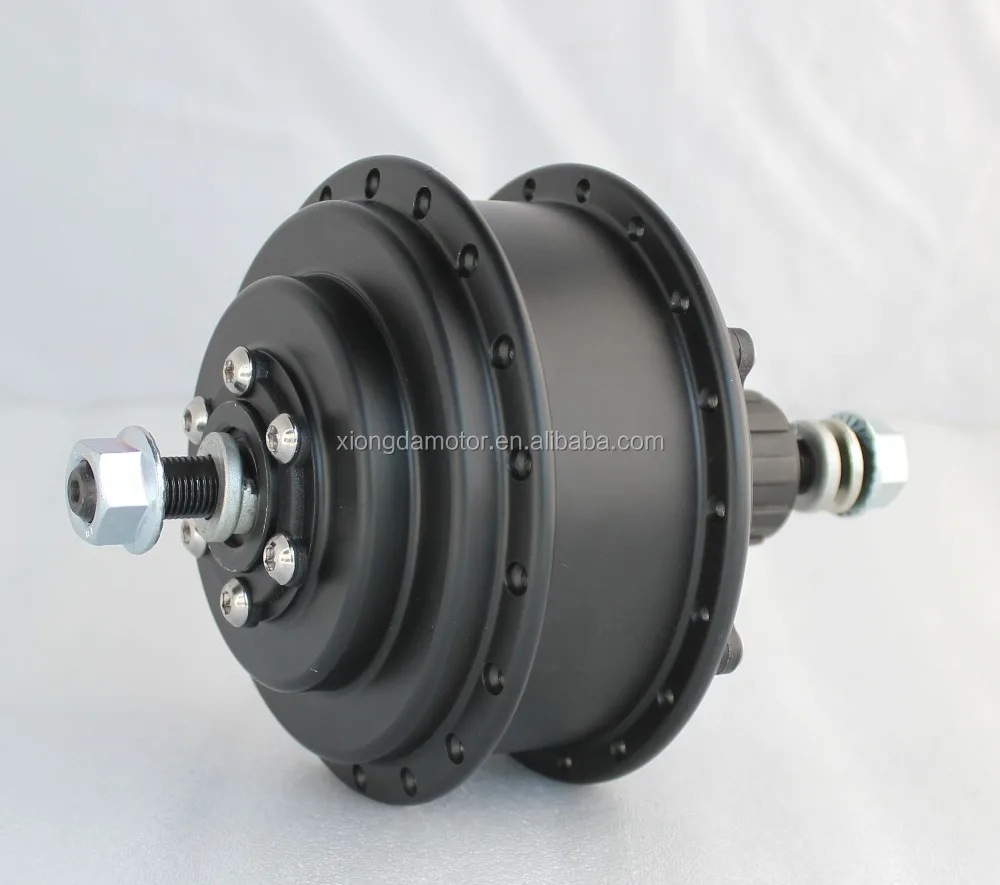

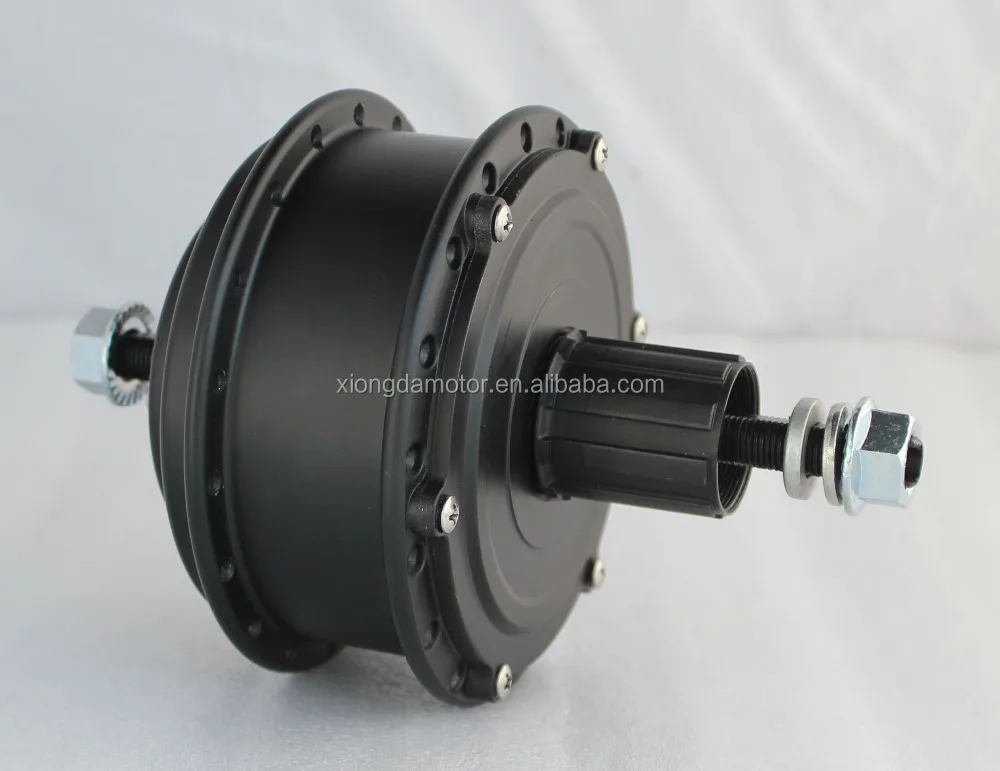

 Product Pictures


 Product Drawings
