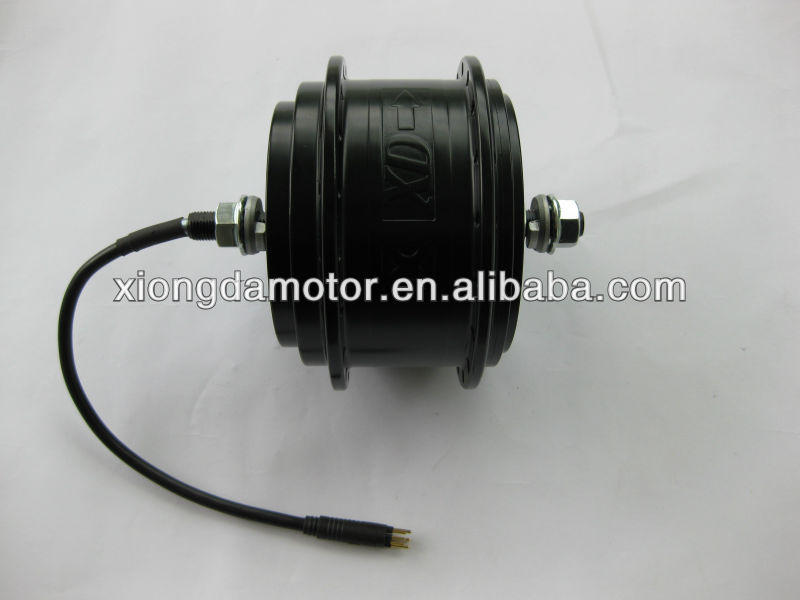

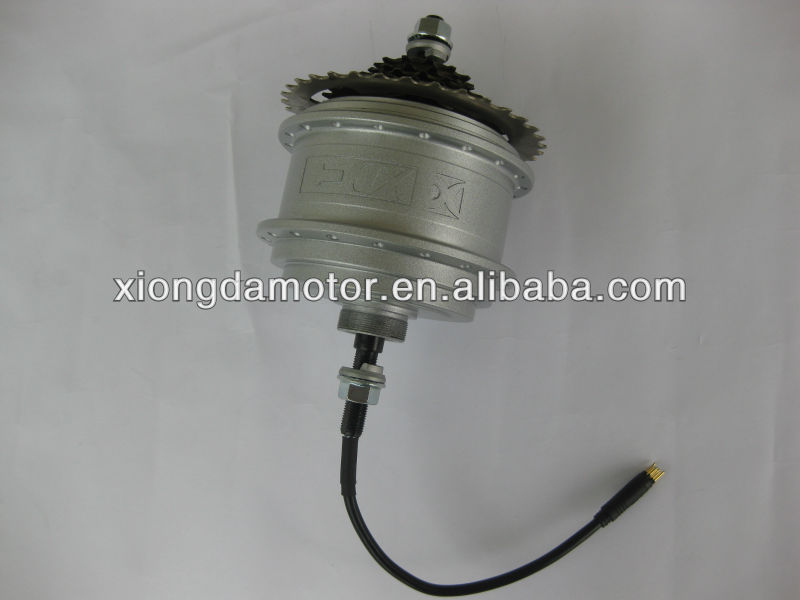

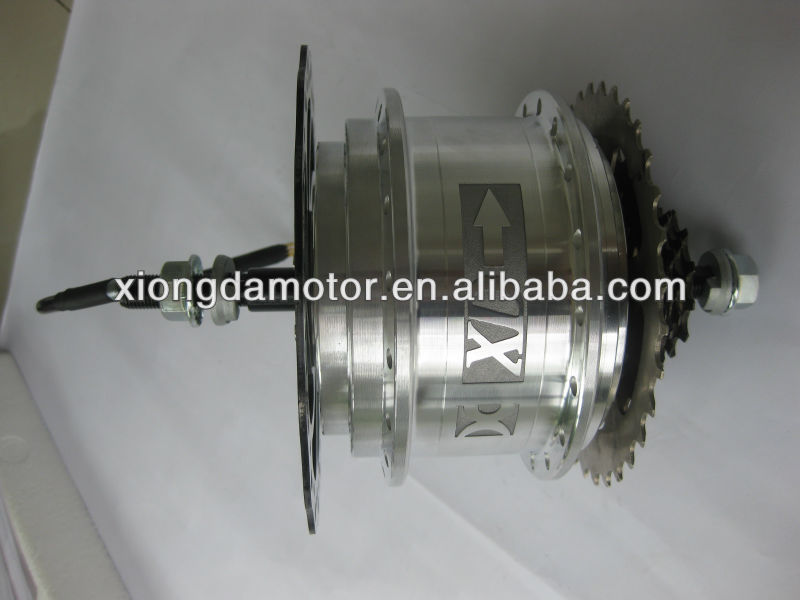

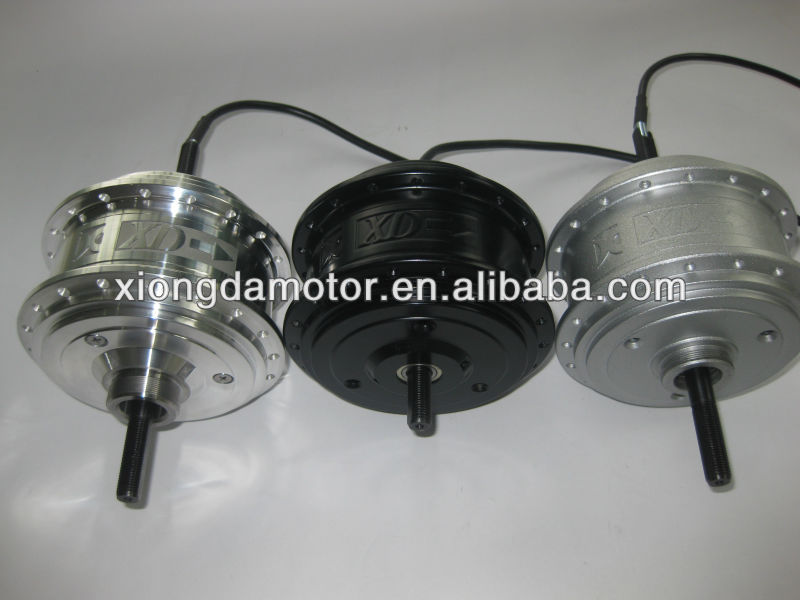

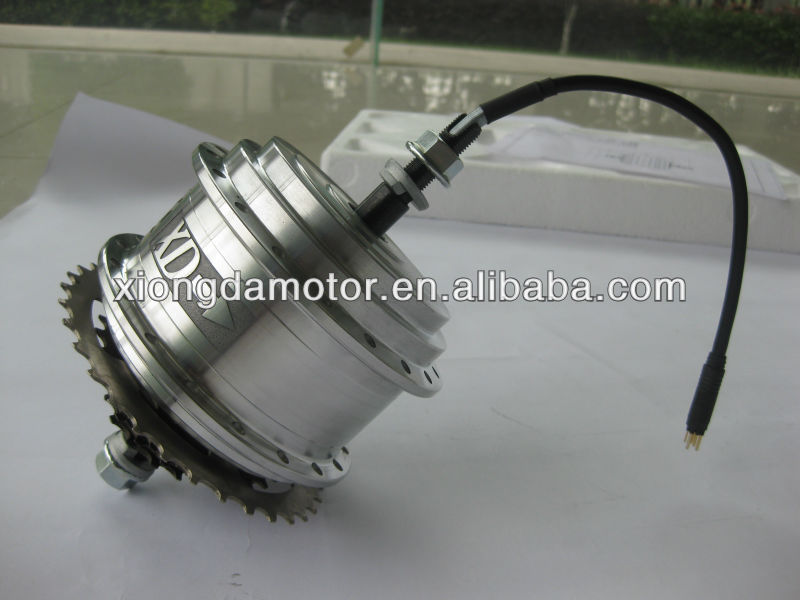

E-bike Rear Motor with CE CCC RoHS Certificates

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Voltage:
24V,26V,48V
Design:
Brushless
Wattage:
> 400w
Brand:
XD
Colour:
Silver/Black/Grey
Cable location:
Left
Max diametre:
132mm
Supply Ability
Supply Ability:
300 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Standard export carton+ foam suitable for air or sea transportation
Port
Shanghai China
Lead Time :
As per the customers requirements

Product Description



New XD Double-speed Motor is coming...


The main features of the Double-speed motor:

a.One motor with two reduction ratios,torque at climbing is 1.82 times of     torque at cruising. Amazing climbing performance.

b.Three types of riding model, high-speed, low-speed and automatic.changing according to the road conditions.

c.Motor, battery and controller is working under a low electric current status,  all parts will works longer.





Parameters of this Product:

Rated Voltage (V)

24/36/48

Cable Location

left

Rated Power (W)

180-350

Spoke Specification

12g/13g

Wheel Size

16''--28''

Hall Sensor

Optional

Rated Speed (km/h)

<35

Speed sense inside

Optional

Rated Efficiency (%)

>=82

Surface

Silver /Black/ Grey

Reduction Ratio

1:4.4

Brake Type

Optional

Weight (Kg)

3.3

Salt fog test (h)

24/96

Open Size (mm)

Optional

Noise (db)

< 60

Drive

Rear

Waterproof Grade

IP54











Testing date:
